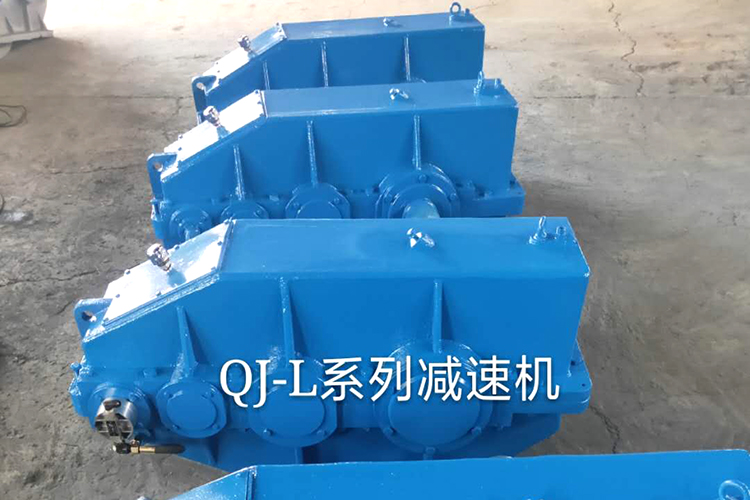

QJL hard tooth surface reducer

QJL hard tooth surface reducer is a common mechanical equipment in the industrial industry. It is an independent component composed of gear transmission, worm transmission, and gear worm transmission enclosed in a rigid housing. It is commonly used as a reduction transmission device between the prime mover and the working machine. It plays a role in matching speed and transmitting torque between the prime mover and the working machine or actuator, and is widely used in modern machinery.

QJL hard tooth surface reducer is generally used for low-speed and high torque transmission equipment. The power of electric motor, internal combustion engine or other high-speed operation is reduced by meshing the gear with fewer teeth on the input shaft of QJL hard tooth surface reducer with the large gear on the output shaft. Ordinary QJL hard tooth surface reducer also has several pairs of gears with the same principle to achieve the ideal reduction effect. The ratio of the number of teeth of the large and small gears is the transmission ratio. So do you know the assembly method of QJL hard tooth reducer? Let's learn about it together.

1. After cleaning the QJL hard tooth reducer components, the device can be installed.
2. The order of the device is in reverse order of disassembly.
3. Smooth oil should be applied to the surface of rolling or sliding parts during installation to create preliminary smooth conditions.
4. Install the cycloidal gear according to the orientation of the character head when disassembling.
5. When installing the output shaft into the machine base, a copper rod should be used to strike the concave part, and the shaft should not be hammered.
6. When inserting the output shaft pin into the corresponding hole of the cycloidal gear, pay attention to the orientation of the distance ring, use the pin sleeve to determine the orientation, and avoid crushing the distance ring.
7. For oil resistant rubber sealing rings, it is important to adjust the tightness of the tension spring and apply a full layer of grease.
8. The bearing of the input shaft can be equipped with a heating method.
9. The sealing paper on the joint surface should be updated.
10. After assembly, the QJL hard tooth surface reducer can be manually rotated to the high-speed input shaft, which should rotate flexibly without any conflict or jamming. Then inject QJL hard gear reducer lubricating oil to the oil mark.
The above is an introduction to the assembly steps of QJL hard tooth reducer. If you want to learn more about QJL hard tooth reducer equipment, remember to follow our website for updates.
