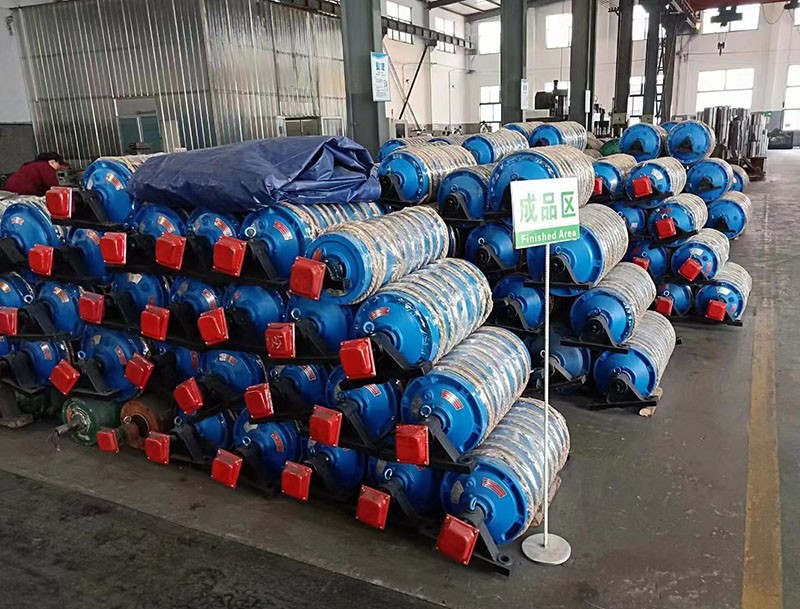

China drum motor

Friends who have come into contact with China drum motors may have some understanding of this type of reducer. To better use drum motor equipment, it is necessary to have a detailed understanding of the basic structure of the equipment. Next, the reducer manufacturer will introduce the basic structure of the reducer.

1. Accessories of the reducer: In order to ensure the normal operation of the reducer, in addition to giving sufficient attention to the structural design of the gear, shaft, bearing combination, and housing, the reasonable selection and design of auxiliary components such as oil injection, oil discharge, inspection of oil level height, precise positioning of upper and lower housing during disassembly and assembly, and lifting should also be considered for the lubricating oil pool of the reducer.

2. Gear, shaft, and bearing combination: This structure is used in situations where the diameter of the gear is not significantly different from that of the shaft. The large gear is assembled on the low-speed shaft and fixed in the circumferential direction using flat keys. The components on the shaft are fixed axially using shaft shoulders, shaft sleeves, and bearing covers. Due to the axial force during gear meshing, both shafts are supported by a pair of tapered roller bearings to withstand the combined effects of radial and axial loads.
3. Box: The box is an important component of the reducer. It is the base of the transmission component and should have sufficient strength and rigidity. The casing is usually cast with gray cast iron, and cast steel casing can also be used for heavy-duty reducers subjected to impact loads.
Through the above understanding, have you gained a better understanding of drum motor equipment? Of course, in the process of daily use of reducer equipment, we must do a good job of maintenance to ensure that the reducer equipment can operate normally in the later stage. If there is anything else you need to know about drum motor, you can always follow our website for updates.
