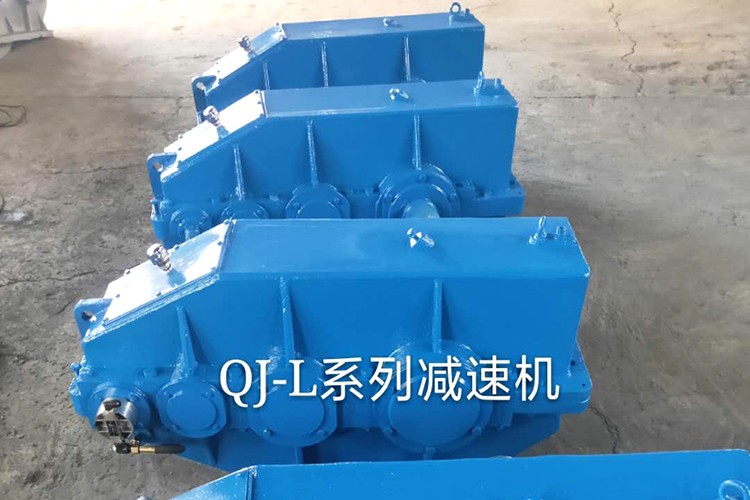

China QJL hard tooth surface reducer

Whether the installation of China QJL hard tooth surface reducer meets the operating requirements and whether the installation position is correct will affect the subsequent use of the equipment.Therefore,in order to ensure the long-term stable use of QJL hard tooth surface reducer,certain precautions need to be followed during installation:
1.When ordering and using various QJL hard tooth surface reducers,if the motor weight is too large,a support device should be installed.

2.The connecting shafts of the prime mover QJL hard tooth surface reducer working machine must be accurately aligned with each other after installation.

3.It must be installed under a flat and sturdy base,and the foot bolts must be sturdy and shock resistant.
4.The tolerance dimensions of the outer diameter of the input and output shaft extensions are made according to the requirements.The inner holes of the matching transmission components such as couplings,pulleys,sprockets,etc.must be prepared according to appropriate tolerance dimensions to avoid damage to the bearings due to tight assembly and affect normal power transmission due to loose assembly.
5.When assembling the motor for QJL hard tooth surface reducer,butter should be applied to the inner hole wall and keyway of the worm head to avoid tight assembly and prevent the shaft hole from rusting over time.
6.When installing transmission components such as sprockets and gears on the shaft extension,they should be placed as close to the bearing as possible to reduce bending stress on the shaft extension.
During the installation process of QJL hard tooth surface reducer,it is necessary to consider adding support devices based on the actual situation,and strictly follow the operating requirements to do a good job of lubrication in order to improve the stability of operation and long-term use.
