QJL series hard tooth surface reducer

The QJ-L type reducer is a derivative of the QJ type reducer, mainly used in the small car operating mechanism of cranes and some large car operating mechanisms such as gantry cranes and loading and unloading bridges. It can also be used in the transmission of other equipment that requires vertical installation, to replace ZSC type reducers.

characteristic:

1) The QJ-L reducer adopts a cast iron box and a base type vertical reducer installed on the side;

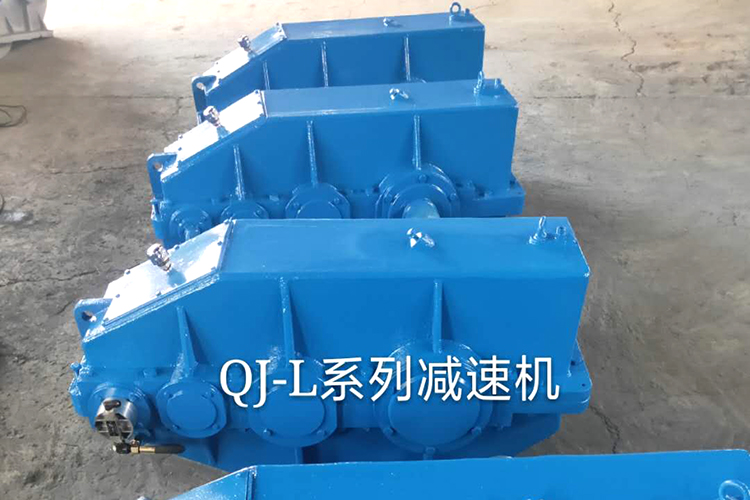

QJ-L vertical reducer

QJ-L vertical reducer

2) Three stage transmission, with a speed ratio of 16-100;

3) This series has 7 specifications, with a nominal center distance of 140-400mm;

4) Small size reducers use oil bath lubrication, while reducers above 280 use centralized oil injection lubrication. The characteristics of QJ-L reducers are the same as those of QJ reducers.
