ZSC gearbox

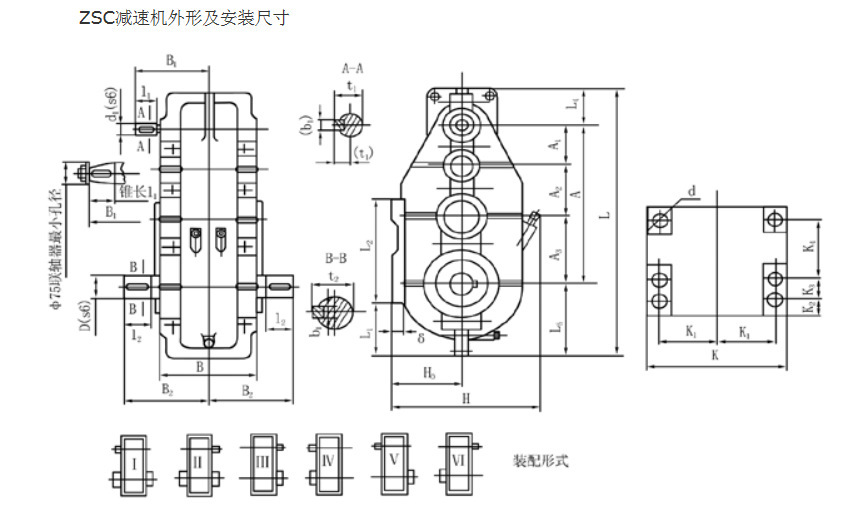

The ZSC series reducer is conveniently mounted directly on the shaft of the mechanism wheel group, thus meeting the requirements of compact mechanical layout. There are locating pin holes on the reducer, which are connected and fixed to the frame after installation and adjustment, making installation and maintenance convenient.

This series of reducers is suitable for the large and small car operating mechanisms of cranes, as well as the operating mechanisms of gantry port cranes, and is also applicable

The applicable conditions for other transmission mechanisms with similar installation types are:

1. High speed shaft speed not exceeding 1500 r/min: 2, gear circumferential speed not exceeding 10 m/s:

3. The working environment temperature is between 40 ℃ and+45 ℃. This reducer can operate in both forward and reverse directions.

The purpose of using a reducer is to reduce the speed and increase the torque. It has a wide variety of types, different models, and different types have different purposes. There are many types of reducers, which can be divided into gear reducers, worm reducers, and planetary gear reducers according to the transmission type; According to different transmission stages, it can be divided into single-stage and multi-stage reducers; According to the shape of gears, they can be divided into cylindrical gear reducers, bevel gear reducers, and cone cylindrical gear reducers; According to the arrangement of transmission, it can be divided into expansion type, diversion type, and coaxial type reducers.
